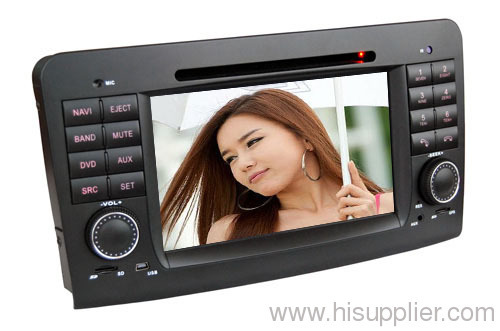

Car DVD GPS with DVB-T RDS for Mercedes-Benz ML W164 and GL X164
Starting at: $653.61
Model: HSL-SD-96D
Warranty: One Year
Payment: PayPal, Bank Transfer, Western Union, Money Gram
Order online: Happyshoppinglife
General function: Special car DVD player, Radio with RDS, fit for Mercedes Benz ML W164 and GL X164, 7 inch digital touchscreen, GPS navigation system with dual zone function, Digital TV DVB-T (MPEG-4) tuner built in, Bluetooth car kit, PIP function, USB port, SD card slot, IPOD ready, CAN Bus box to support original steering wheel controls
Specification
* Special design for Mercedes Benz model
- Mercedes Benz ML W164 (2005-2012)
- Mercedes Benz GL X164 (2005-2012)
* 7 Inch TFT HD display
* Resolution: 800 x 480
* Two Din standard
* Video Systems: PAL, NTSC, AUTO
* Discs support: DVD/
VCD/ CD/ MP3/ MPEG4/ DIVX/ CD-R/ WMA/ JPEG
* SD card slot, USB port support mp3, mp4, Divx, WM etc
* AM Frequency Range: 522~1710KHz (Worldwide)
* FM Tuning Range: 87.5~108.0MHz (Worldwide)
* Radio receiving: high sensitive AM/FM receiving mode, pre-setting 24 stations and programs
* RDS System: YES
* PIP function (picture in picture): YES
*
TMC: Traffic Message Channel (this function is optional, please tick the optional checkbox if you need it)
* CAN Bus box to support original steering wheel controls
* Operation: Touch Screen, Remote Control, Front panel key-press
* External Memory:
- USB Driver: YES
- SD Card: YES
* Audio Information:
- Max Audio Output: 60W x 4
- Signal-To-Noise Ratio (SNR): 85db
- User adjustable EQ: Flat, Rock, POP, Jazz and Class
- User adjustable Sound: Bass, Treble, Balance and Fade
* GPS Information:
- GUI Interface: YES
- 3D type
- Touchscreen Interface: YES
- Operating System: WIN CE 6.0 Core
- Chip: newest pogram ARM11 of SIRF
- Dual Zone function: Yes
* Digital TV Tuner Information:
- DVB-T receiving standard: MPEG-4
- Automatic and Manual Search
* Bluetooth Information:
- Pair with mobile phone, then use touchscreen interface
- Dial, Answer, Stop Call
- Call History (Dialed, Received, Missed)
- Phone book
- Volume Control
- Touchscreen Keypad
* Car reverse reminder: With car reverse video signal input, connect with sorts of reverse mirror, view the car reverse status
* Media Inputs:
- DVD/CD disc slot
- GPS SD card slot
- SD card slot
- Mini USB input (front)
- GPS Antenna (rear)
- DTV Antenna (rear)
* AV Cables / Wires:
- Radio antenna port IN
- GPS antenna port IN
- DTV Antenna port IN
- IPOD connector
- Aux In L
- Aux In R
- Aux-Video IN
- Back Video Camera IN
- Subwoofer
- Video OUT x2
- Steering Wheel Control 1
- Steering Wheel Control 2
- RCA Audio OUT x2 (front L and R)
- RCA Audio OUT x2 (rear L and R)
- Left Front Speaker x2
- Right Front Speaker x2
- Left Rear Speaker x2
- Right Rear Speaker x2
* OSD Languages: English, German, French, Spanish, Dutch, Hungarian, Czech, Danish, Turkey, Norwegian, Swedish, Portuguese, Italian, Finland, Roumania, Greek, Russian, Polish
* Certifications: CE, FCC
Package Contents
* Mercedes Benz DVD GPS with DVB-T
* Remote control
* Touch pen
* Magnetic GPS antenna with 300 cm cord
* Digital TV DVB-T antenna
* USB Extension Cable
* iPod Cable
* Free 4GB SD card with evaluation GPS software and maps
* ISO wire harness
* Mounting hardware
* User manual - English
Product Notes
This model is special design for Mercedes Benz ML W164(2005-2012) and GL X164(2005-2012)
There are two vesions for Benz ML W164 and GL X164. One vesion comes with factory speaker and amplifier below the auto co-pilot pads and another without. If you car with the factory speaker and amplifier, we will provide a B7 power cable in the package to connect the amplifier below the auto co-pilot pads.
So please write an order comment to indicate if your Benz has this factory audio system or not when you purchase this product.
This product supports the DVB-T digital TV, which suit for Europe countries, Australia, New Zealand, Colombia, Indonesia, Malaysia, etc. Please check to see if DVB-T will work in your region.
The DVB-T encoded signal types for this model is MPEG-4, which receive all signals for MPEG-2 and MPEG-4.
It compatible with most brands of GPS software, the popular are IGO, Route66, Gate5 and Papago. However hardware specific software such as Garmin may not run on this unit. Happyshoppinglife provides the GPS-enabled hardware, free evaluation software and map. Happyshoppinglife provides no warranty or customer support regarding original GPS software and cannot provide downloads / links / advice regarding original GPS software and map.
