General function: BMW X1 E84 year 2009-2013 Navigation system, 8 inch Multimedia player, Picture in Picture, digital TV (DVB-T MPEG-4, ATSC M/H or ISDB-T for optional to suit for customers from different areas), Bluetooth, support A2DP, USB port, Two SD card slot, IPOD ready, support 1080P HD video, Support hard disk 500G and HD map, two way CAN Bus to support original steering wheel controls and on board computer

Specification

* Special design for BMW X1 E84 model 2009-2013 without navigation system

* Replace the BMW X1's storage cabinet with an 8 inch screen head unit and volume button (no need to dismantle the original radio/ CD player)

* 8 Inch TFT HD display

* Resolution: 800 x 480

* Adopt the latest ARM11 to develop high performance multimedia play

* HD video:1080P

* Support hard disk 500G and HD map

* Support MP5 Multimedia HD video play

* Video Systems: PAL, NTSC, AUTO

* DVD slot-in: No

* Two SD card slot: one for GPS navigation map, another for multimedia player

* PIP function (picture in picture): YES

* Operation: Touch Screen, Remote Control

* TWO-Way CAN BUS decoder: keep the principle of original car steering wheel control system function interlinked with the factory radio unit

- Backlight adjustment

- Car/Vehicle speed

- Driving Computer Information

- System configuration information

- Time and date information

- Steering wheel buttons

- CDC Playing information

- CDC Disc Status information

- Return control information

- Door information

- Software Version information

* External Memory:

- USB Driver: USB 2.0 high speed OTG, USB1.1 HOST, support the USB SATA hard disk

- SD Card: support 128G (Max)

* Audio Information:

- Max Audio Output: 45W x 4

- Signal-To-Noise Ratio (SNR): 85db

- User adjustable EQ: Flat, Rock, POP, Jazz and Class

- User adjustable Sound: Bass, Treble, Balance and Fade

* GPS Information:

- GUI Interface: YES

- 3D type

- Touchscreen Interface: YES

- Operating System: WIN CE 6.0 Core

- Chip: newest pogram ARM11 of SIRF

- RAM: 256MB

- Frequency: 800MHZ

- Dual Zone function: Yes

* Digital TV tuner for your option:

- DVB-T (MPEG-4): using in Europe countries, Australia, New Zealand, Colombia, Indonesia, Malaysia, etc.

- ATSC M/H: using in most areas in USA, Canada and Mexico

- ISDB-T: using in Japan and South America countries

* Bluetooth Information:

- Pair with mobile phone, then use touchscreen interface

- Dial, Answer, Stop Call

- Call History (Dialed, Received, Missed)

- Phone book

- Volume Control

- Touchscreen Keypad

- Support A2DP

* Car reverse reminder: With car reverse video signal input, connect with sorts of reverse mirror, view the car reverse status

* Media Inputs:

- GPS SD card slot

- SD card slot

- Mini USB input (front)

- GPS Antenna (rear)

- Digital TV Antenna (rear)

* AV Cables / Wires:

- GPS antenna port IN

- DTV Antenna port IN

- IPOD connector

- Aux In L

- Aux In R

- Aux-Video IN

- Back Video Camera IN

- Subwoofer

- Video OUT x2

- Steering Wheel Control 1

- Steering Wheel Control 2

- RCA Audio OUT x2 (front L and R)

- RCA Audio OUT x2 (rear L and R)

- Left Front Speaker x2

- Right Front Speaker x2

- Left Rear Speaker x2

- Right Rear Speaker x2

* OSD Languages: English, German, French, Spanish, Dutch, Hungarian, Czech, Danish, Turkey, Norwegian, Swedish, Portuguese, Italian, Finland, Roumania, Greek, Russian, Polish

* Certifications: CE, FCC

Package Contents

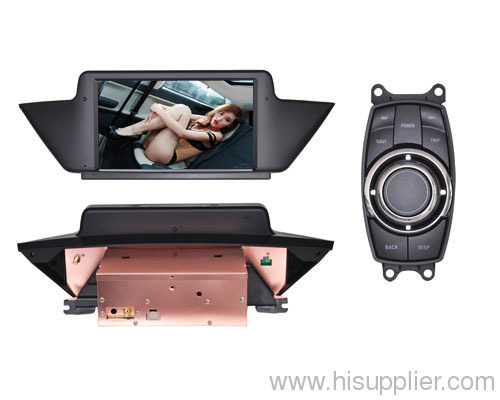

* BMW X1 E84 Multimedia Player

* Remote control

* Touch pen

* Magnetic GPS antenna with 300 cm cord

* Digital TV antenna

* USB Extension Cable

* iPod Cable

* Free 4GB SD card with evaluation GPS software and maps

* ISO wire harness

* Mounting hardware

* User manual - English

Product Notes

- This model is special design for BMW X1 E84 model 2009-2013 with storage cabinet

- This product comes with digital TV tuner. The digital TV tuner standard (DVB-T MPEG-4, ATSC M/H or ISDB-T) is for your selection. You can choose the correct DTV according to the areas where you will use the device.

- It compatible with most brands of GPS software, the popular are IGO, Route66, TomTom and Finean. However hardware specific software such as Garmin may not run on this unit. Happyshoppinglife provides the GPS-enabled hardware, free evaluation software and map. Happyshoppinglife provides no warranty or customer support regarding original GPS software and cannot provide downloads / links / advice regarding original GPS software and map.

- Reverse Rearview function can be available only when the back up camera is installed. Visit BMW Rearview Camera to select the best rearview camera for your car.

- Buy video parking sensor to compatible with this navigation system, please click Rear View Parking Sensor - back up camera fit for your car

- Looking for this Navigation system without digital TV, please check BMW X1 E84 Multimedia Player with GPS Navigation CAN Bus
